Tuesday, September 09, 2008

Stern Decks and Starboard Cabin

The current priority in the construction is to get the stern sections of both hulls decked so that I can focus on finishing the cabin interiors. As with the forward decks, the compartments beneath them will be completely finished before the decks go on, so that once these sections are covered with decks they will be out of sight and out of mind. Completing entire sections like this is always a good feeling as I can then move on to other areas without having to think about this again.

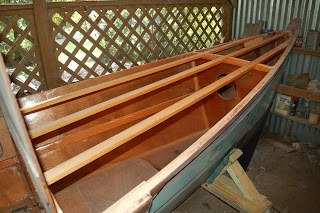

Stringers of Doug fir were first cut to length and fitted in the deckbeam notches. These stringers all have radiused corners on the bottom edges where they will be exposed. They were held in place by temporary screws while I marked and cut the deck panels, which are made of 6mm plywood.

There are only three stringers supporting the deck in these stern sections, but their stiffness will be enhanced by large fillets bonding them to the underside of the deck panels. Combined with the sheathing of 6-oz. fiberglass on the top surfaces, this will make the decks plenty strong while keeping them lightweight.

Here you can see the assembled deck panels with the stringers glued and filleted in place.

Below are the completed stern decks ready for installation. All the parts have been sanded and second coated with epoxy. They will be installed later this week after I get the final coats of paint in the stern buoyancy compartments and varnish in the aft bunk areas.

The outer cabin side for the starboard hull has also been installed and filleted to the shelves and bulkheads.

There will not be as many built-in fixtures as in the port hull. In addition to the panels for the electrical switches and the VHF radio and other instruments, there will be a removable chart table that will span across the navigation station and a hinged seat back that will allow comfortable seating at the chart table. Companionway steps identical to the ones in the port hull will be built on the inboard side.
