Thursday, March 27, 2008

Turning the Starboard Hull

Today I turned the starboard hull upside down for the first time, in preparation for shaping and then fiberglassing and fairing the hull exterior.

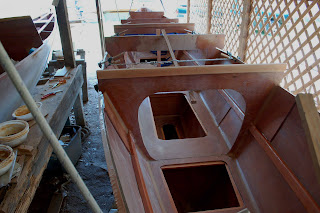

These first two photos are from last week, the day after I installed the topside panels. Once the panels were glued on at the bottom edges and held in place with temporary screws, I used a series of Spanish windlasses and adjustable straps to pull the upper edges of the topsides, at the sheer, in tight against the upper bulkhead edges. With everything locked in place, fillets were then made at the topside to bulkhead joints, and the cavities at the stem and sternpost were filled with thickened epoxy.

Note the bar clamps along the sheer used as anchor points for attaching the windlass lines. This worked really well and avoided the need for drilling holes for eye screws as I did on the port hull.

This is where I am today, with the hull upside down on the sturdy low saw horses I built for the purpose. The hull has been sanded and precoated with epoxy. The next step before glassing will be to fill and fair all the joints at the keel, stem and sternpost, and topside lap joints.
