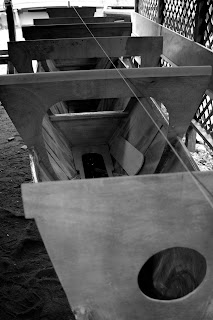

Work on the starboard hull continues with glassing the now finished and sanded keel fillets. The first layer of 6 oz. cloth is laminated in and the floors have been cut and shaped to fit. Below is a view looking into the keel section from aft of bulkhead two. In the main entrance area of the cabin between bulkhead 2 and 3, I used the same floor pattern as that in the port hull, with a large removable panel cut out to provide easy access to the bilges. In this section just forward of bulkhead 2 is enough space to fit a 3-gallon portable head. Since the bunks are raised by 3 inches from the designed height, this portable unit will fit almost flush at bunk height. A removable panel that serves as a seat for the navigation area will be used to cover it when it is not needed.
Forward of bulkhead 3, there is an additional floor panel with openings cut out to further stiffen this section of the hull beneath the bunks and to divide up the large space there for easier stowage of supplies. These larger areas under the bunks and above this floor level will likely be used to carry a good portion of my water supply. I've located some great 4-gallon jerry cans that are just the right size and shape to fit in this space, three in each hull. More water can, of course, be carried in smaller containers in the other below bunks spaces and in the forward holds.
Back at the garage shop in Jackson, I have had to do some major cleaning out and rearranging to have room to continue work on my cross beams while building the small Backwoods Drifter I am building for a customer. The space is just enough to have a flat table to store and cut 4 x 8 sheets of plywood, set up the beams to finish work on them, and to assemble and build the drifter. Below is a photo showing the first stage of assembly of this stitch and glue boat. The larger transverse bulkheads in the midships sections are temporary forms that will be removed after all the interior parts are fitted to stiffen the hull.
As soon as this boat is completed and out the door, I plan to use this same space to build the cockpit for Element II. Other parts that will likely be built in the garage are the tillers and tiller bar, gaff, and the extra aft beam for the rear trampoline.
As soon as this boat is completed and out the door, I plan to use this same space to build the cockpit for Element II. Other parts that will likely be built in the garage are the tillers and tiller bar, gaff, and the extra aft beam for the rear trampoline.
