Back in February, I wrote a post describing the custom portlight frames I was making with the router. Here is the original post: http://tiki26element2.blogspot.com/2008/02/frames-for-portlights.html

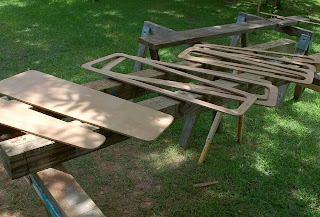

While working on the hull fairing and prepping for paint recently, I had some drying time here and there allowing for other projects. Finishing up these portlight frames was one of those. Below you can see all of the frames: A set of inner and outer ones for the small forward and larger rear portlight. The solid pieces to the left are the templates for the actual Lexan portlights.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgutcp6m2FBrF8voURozaqFW-qz8Xe1Izf-rP2ymqkRJjVaqxkofFw0cDavFQlbT0ZbwIC3iBg5l0L0QAn3fb-6AQitZLHKFPyQ1kKngx2NE9XP1K2Zgq9d20tQ-3j-5kOrw8CG/s320/frames+and+templates.jpg)

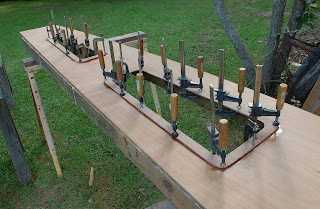

Both outer cabin sides have already been cut and pre-fitted when the hulls were upright, so I could now go ahead and glue on the outer portlight frames. Putting them on first before installing the cabin sides on the boat will make it easy to create a nice fairing fillet around the outer edges of the frames. The frames will be sheathed with the same fiberglass covering the cabin side, and the fillets will make a nice transition possible. When the cabins are done and these sides are faired and painted, the Lexan will be installed from the inside with a silicon sealant. The inner frames will then be screwed into place to secure the Lexan.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjpRrJ7LcuGjSYG7qaQS-vYNKcmIQdiuAOz28-fG8iXy-FrMFrqM0G5KyVKuoCw09PjtHBw756McvEKgUJJy3HC7yBxI_Jh_7qTTRkuaDOZ7Dnx311MOAZx-aoEHOvOYAMVrn2-/s320/installing+frames.jpg)
